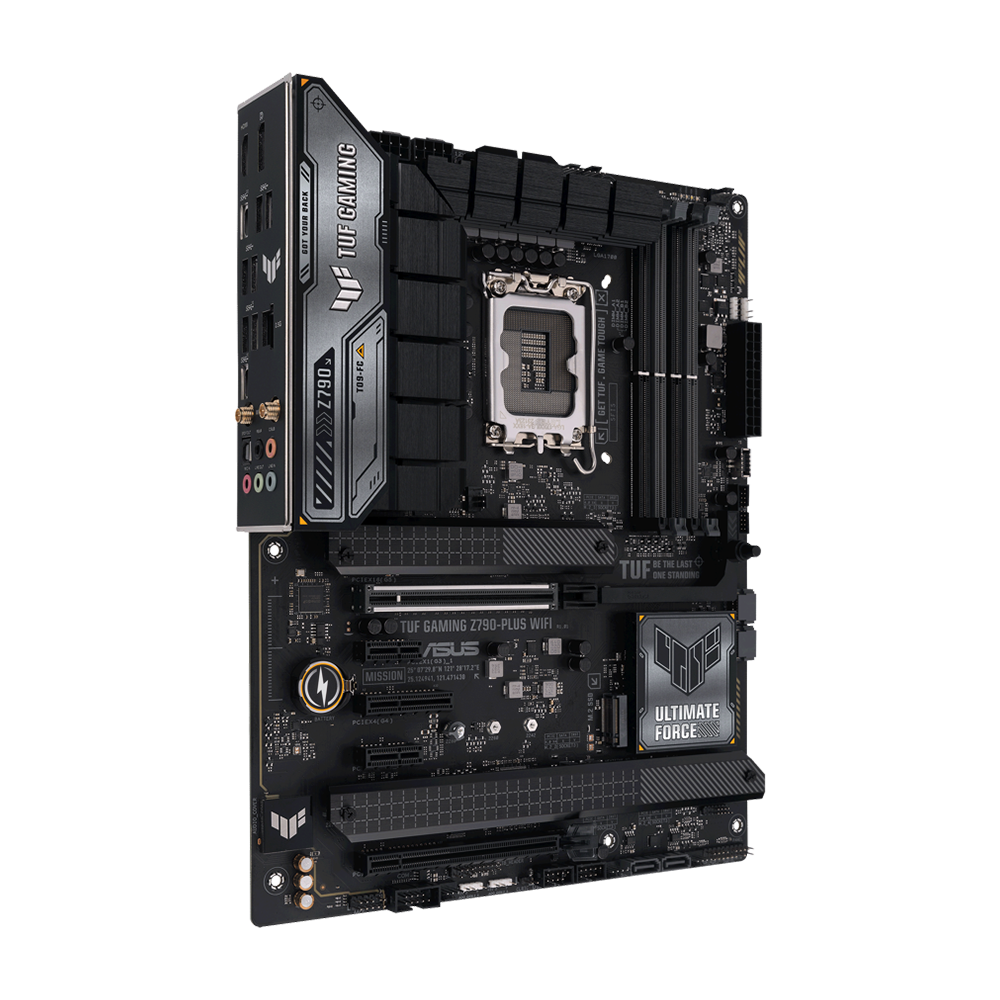

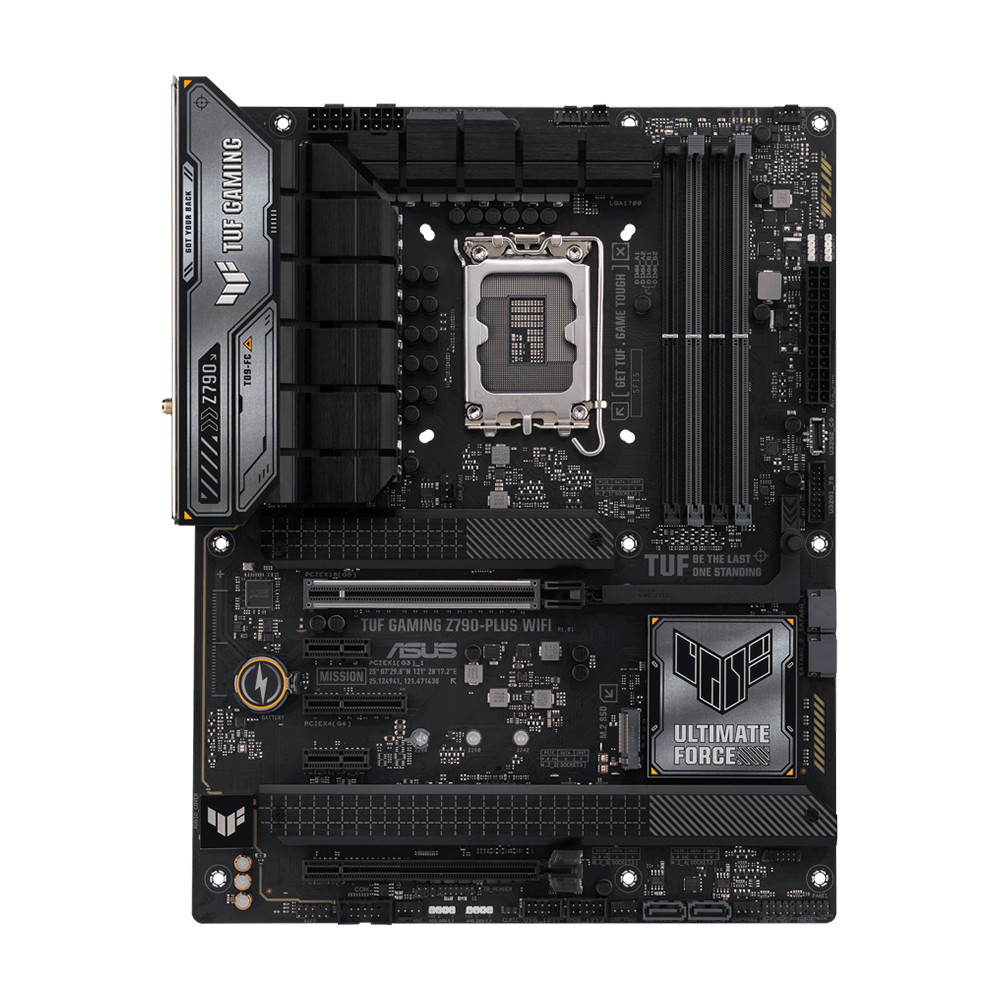

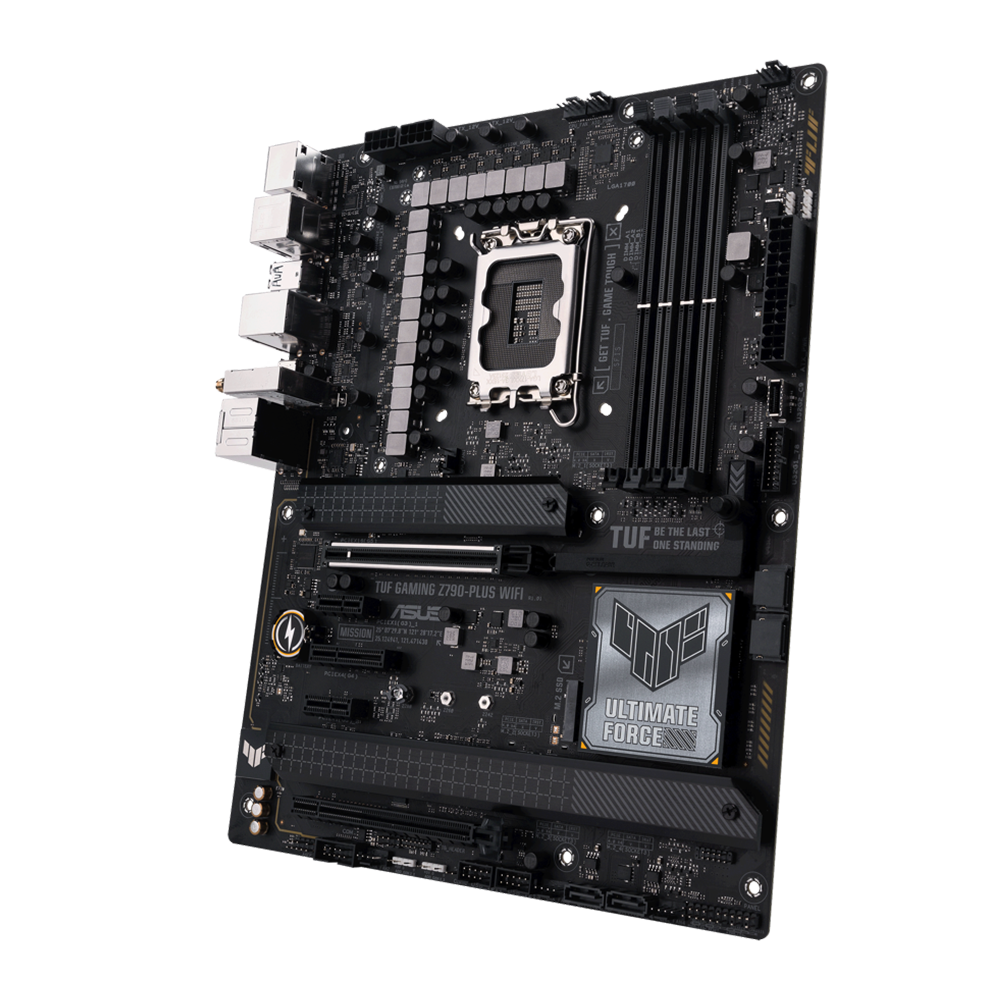

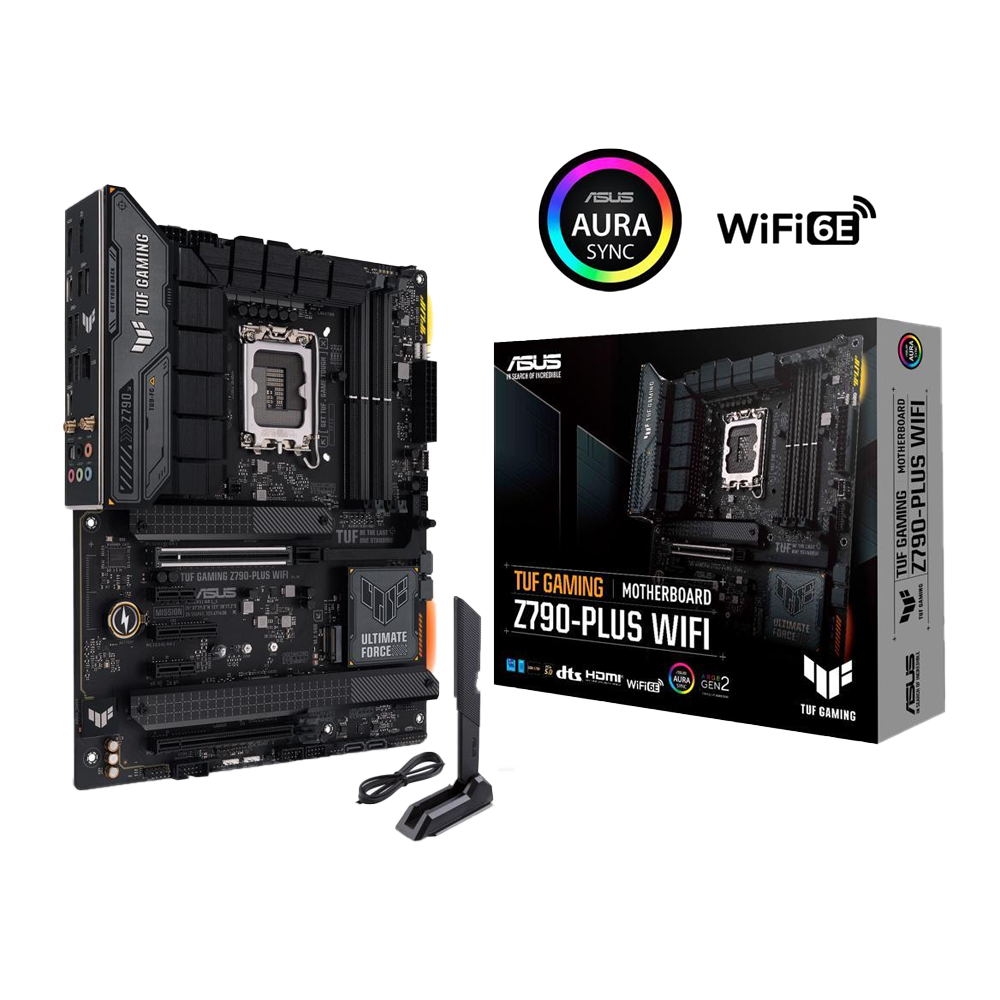

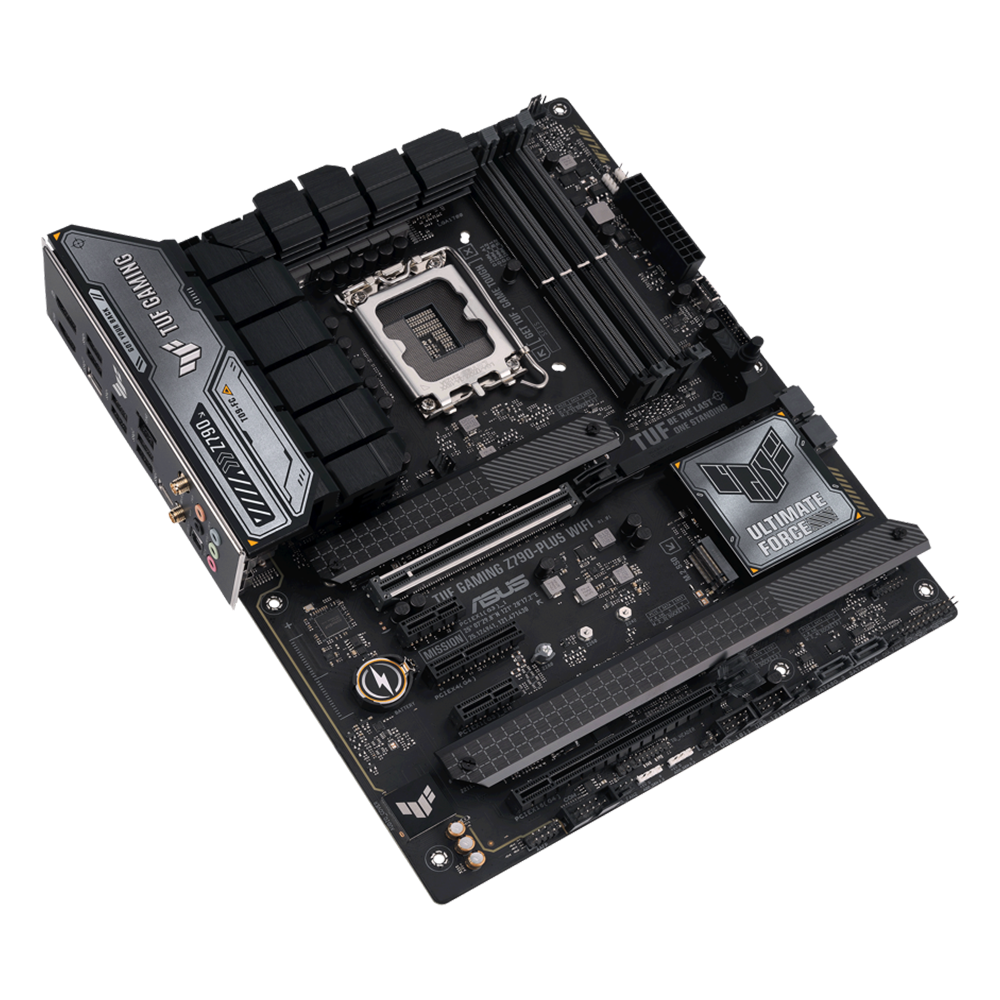

Asus TUF Z790-Plus WIFI 6E Gaming | Intel S1700 ATX

TUF
Availability:

Ka stok

Gjendja: E Re ne Kuti | Garancia: 12 Muaj


  • AUSU Tuf Z790 Series
  • Z790-Plus WIFI
  • Intel S1700 Gen12/13/14
  • DDR5 Ram, 4x DIMMs
  • 2.5GbE LAN & Wi-Fi 6E
  • PCIe 5.0 x16 slot with 10X strength
  • NVMe 4.0 Support

32.500 LEK

Ka stok

Bli Menjeher vetem kete produkt
Model
Brand ASUS
Series TUF
Model TUF GAMING Z790-PLUS WIFI
Part Number 90MB1D80-M0AAY0
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Intel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset  Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported 128GB
Channel Supported  Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Expansion Slots
PCI Express 5.0 x16 Intel® 14th, 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16 1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x1 1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel® 14th, 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Onboard Audio
Audio Channels  Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Onboard LAN
Max LAN Speed 1 x Intel® 2.5Gb Ethernet
TUF LANGuard
Wireless LAN Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications

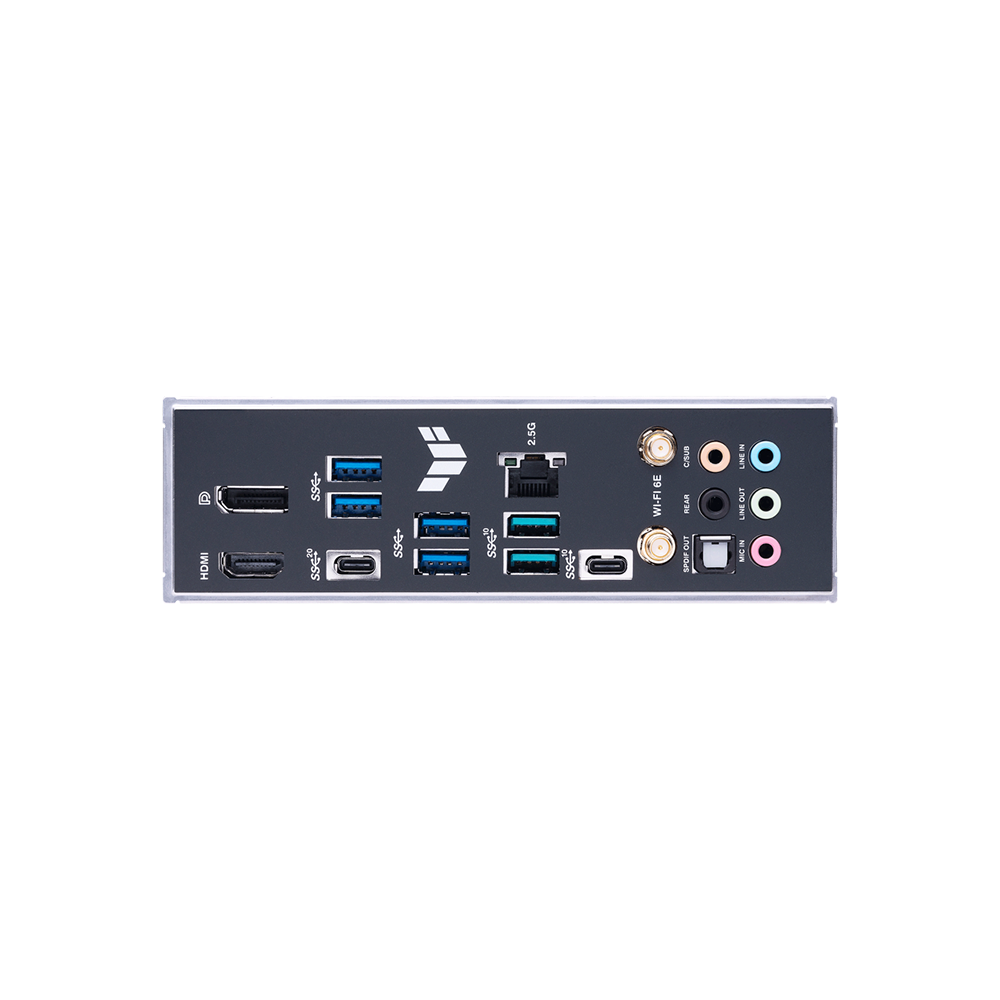

Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Physical Spec
Form Factor ATX
Dimensions (W x L) 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Windows Compatibility
Windows 11 Windows® 11, Windows® 10 64-bit
Features
Features ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 headers
Additional Information
Date First Available January 17, 2023
SKU: Z790-Plus WIFI Kategori: , Etiketa: , , , , , Markë:
Peshë 4 g/kg
Brand

TUF

Condition

New

CPU Socket

LGA S1700

fit-size

ATX

lights

No Ilumination

Ram Frequency

DDR5 4800Mhz, DDR5 5200MHz, DDR5 5600MHz, DDR5 6000MHz, DDR5 6400MHz, DDR5 6600MHz, DDR5 6800MHz, DDR5 7000MHz, DDR5 7200MHz, DDR5 7600MHz

Storage Type

2.5" Sata, 2280, 3.5" Sata, NMVe, PCIe 3.0, PCIe 4.0, PCIe x4, 22110, M.2 Sata

Warranty

12Months
