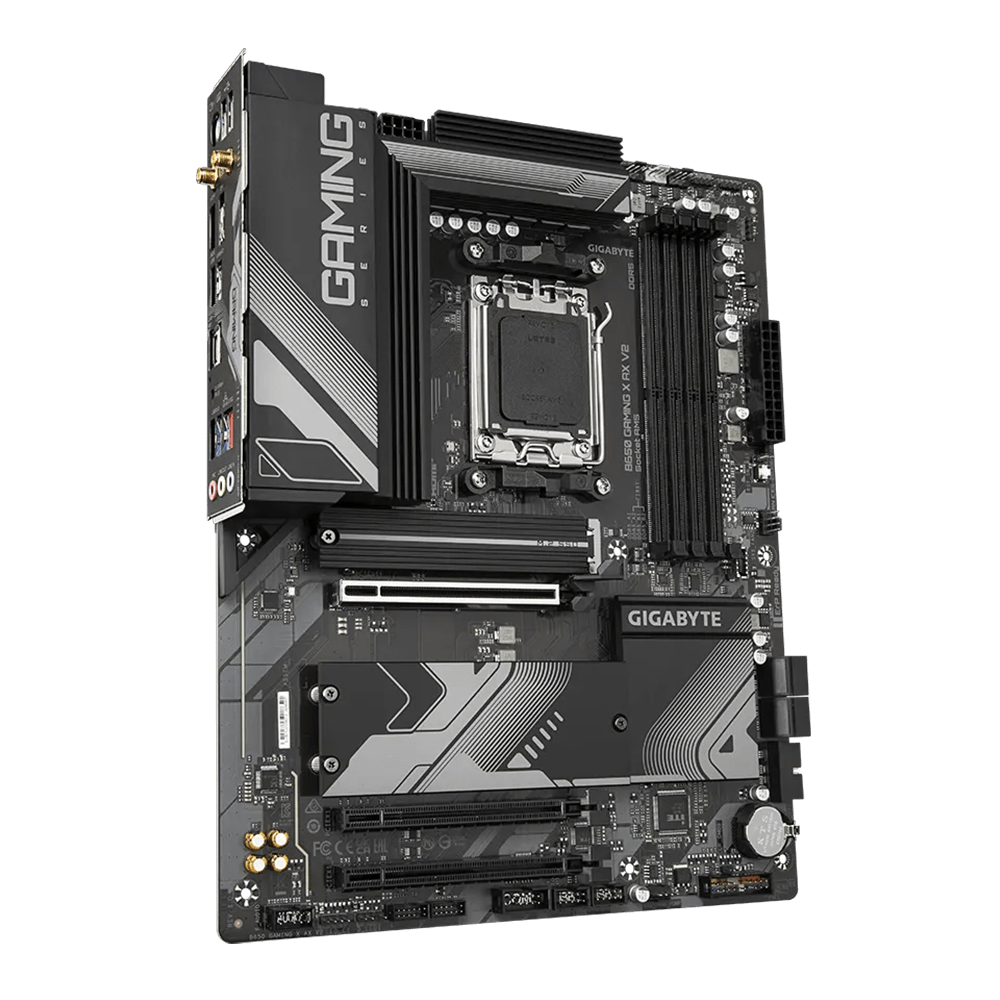

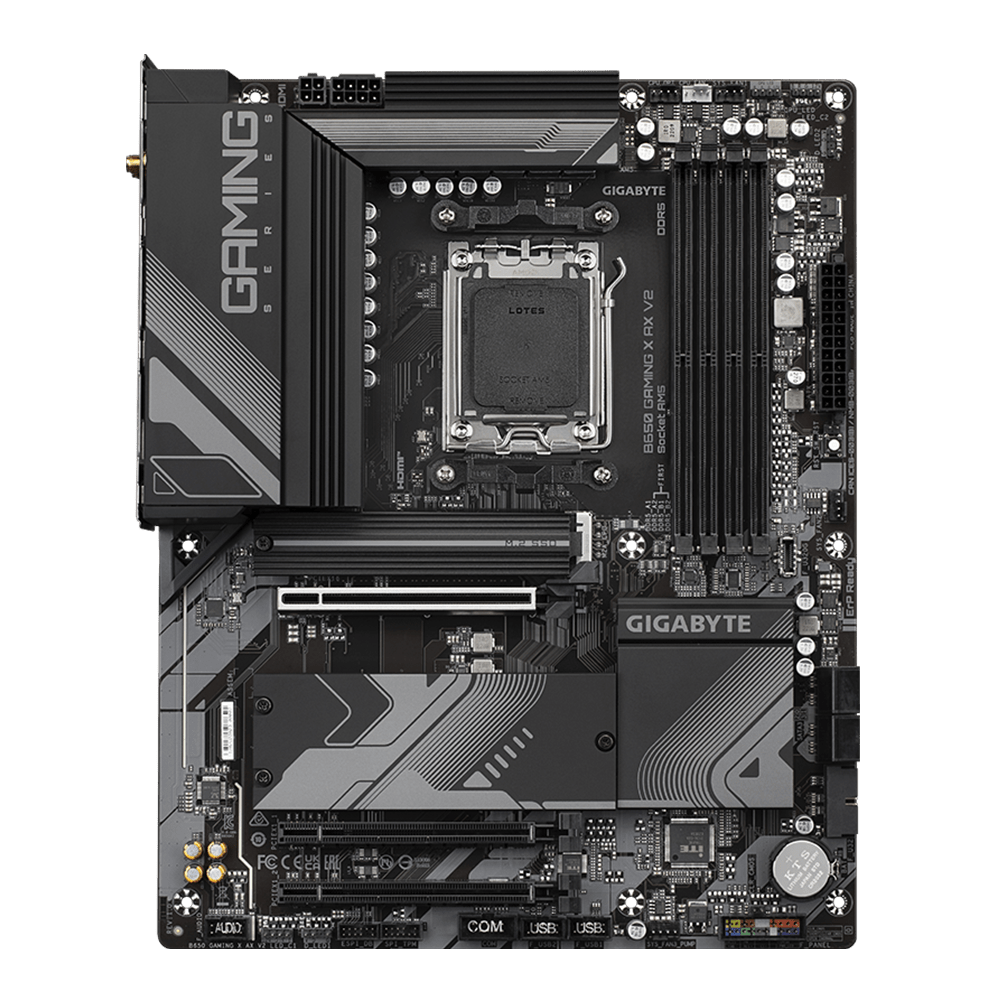

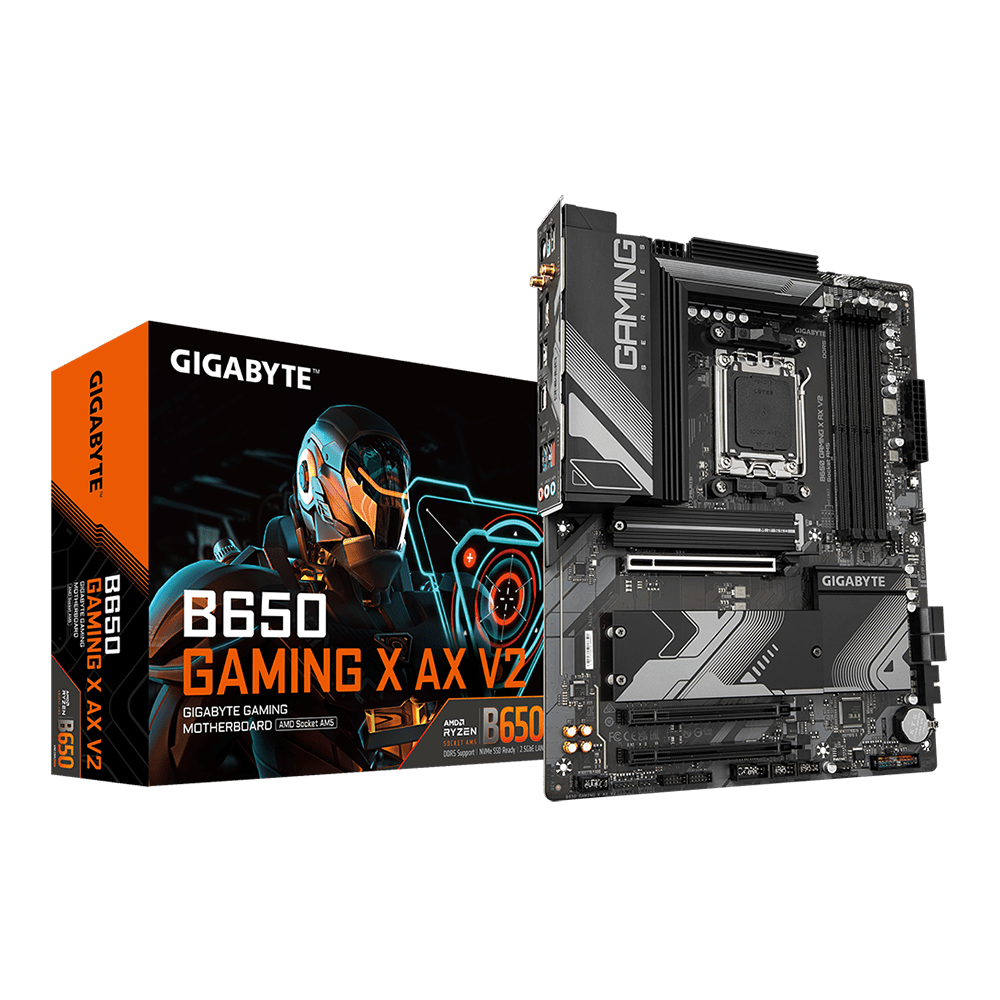

Gigabyte B650 Gaming X AX V2 WIFI WAM5 DDR5 | ATX

Gigabyte
Availability:

Ka stok


  • Gigabyte B650 Seris MBO
  • B650 Gaming X AX V2
  • Ryzen 7000/8000 Series
  • WIFI & Bluetooth inside
  • 4x DDR5 DIMM’s, ATX
  • PCIe 5.0 NVMe Support
  • PCIe 5.0 GPU Support
  • Direct 8+2+2 Phases
  • 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Q-Flash Plus Support

25.500 Lekë

Ka stok

Bli Menjeher vetem kete produkt
  • CPU
    1. AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. AMD B650
  • Memory
    1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

  • Onboard Graphics
    Integrated Graphics Processor with AMD Radeon™ Graphics support:

    1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
      * Support for DisplayPort 1.4 version and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard

    AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
    2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
      * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

    1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    2. AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

    1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB
    CPU:

    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 1 x USB 3.2 Gen 1 port on the back panel

    CPU + USB 2.0 Hub:

    1. 3 x USB 2.0/1.1 ports on the back panel

    Chipset:

    1. 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    3. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x CPU fan/water cooling pump header
    6. 2 x system fan headers
    7. 1 x system fan/water cooling pump header
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 1 x CPU cooler LED strip/RGB LED strip header
    11. 3 x M.2 Socket 3 connectors
    12. 4 x SATA 6Gb/s connectors
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    16. 1 x USB 3.2 Gen 1 header
    17. 2 x USB 2.0/1.1 headers
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    19. 1 x serial port header
    20. 1 x reset button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper

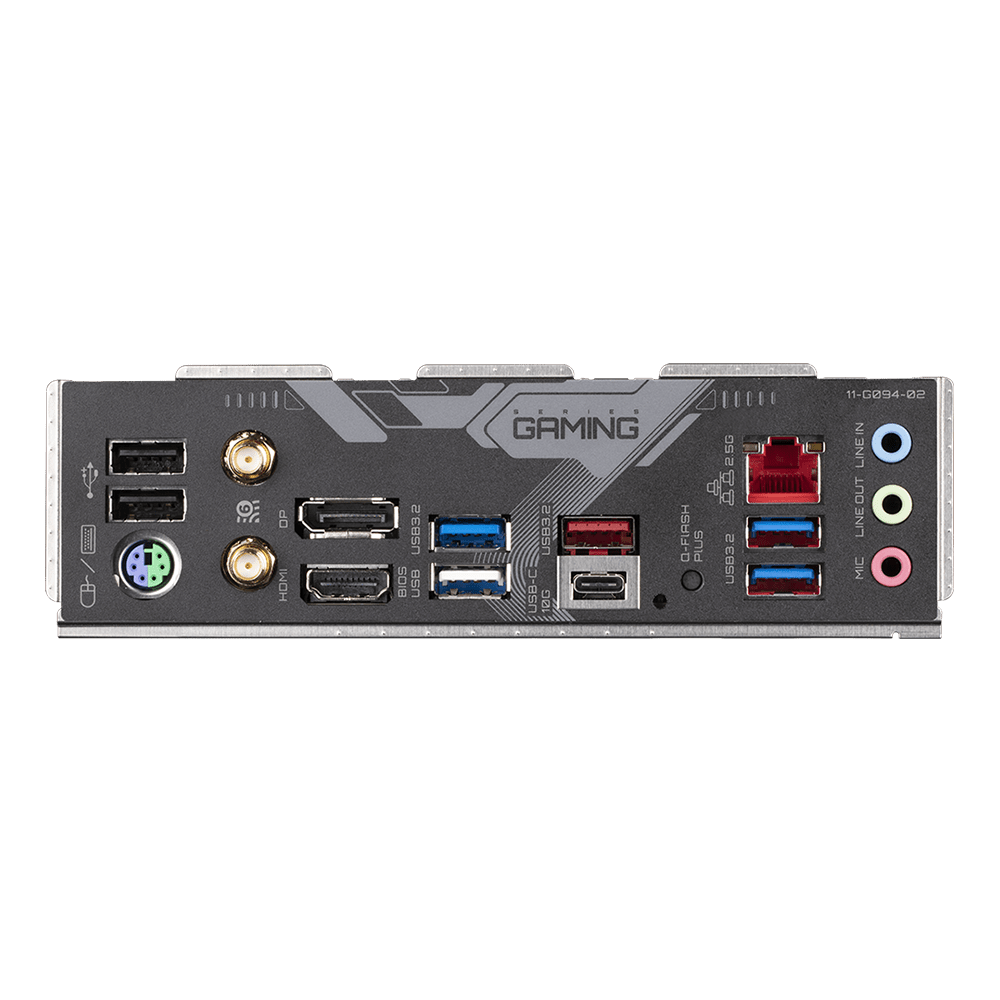

  • Back Panel Connectors
    1. 2 x SMA antenna connectors (2T2R)
    2. 1 x Q-Flash Plus button
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 3 x USB 3.2 Gen 1 ports
    8. 3 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
SKU: B650GXAXV2 Kategori: , Etiketa: , , , , , ,
Peshë 2 g/kg
Brand

Gigabyte

Condition

New

CPU Socket

AMD AM5

fit-size

ATX

lights

No Ilumination

Ram Frequency

DDR5 4800Mhz, DDR5 5200MHz, DDR5 5600MHz, DDR5 6000MHz, DDR5 6400MHz, DDR5 6600MHz

Storage Type

2.5" Sata, 2280, 3.5" Sata, NMVe, PCIe 3.0, PCIe 4.0, PCIe x4, M.2 Sata, PCIe 5.0

Warranty

12Months
