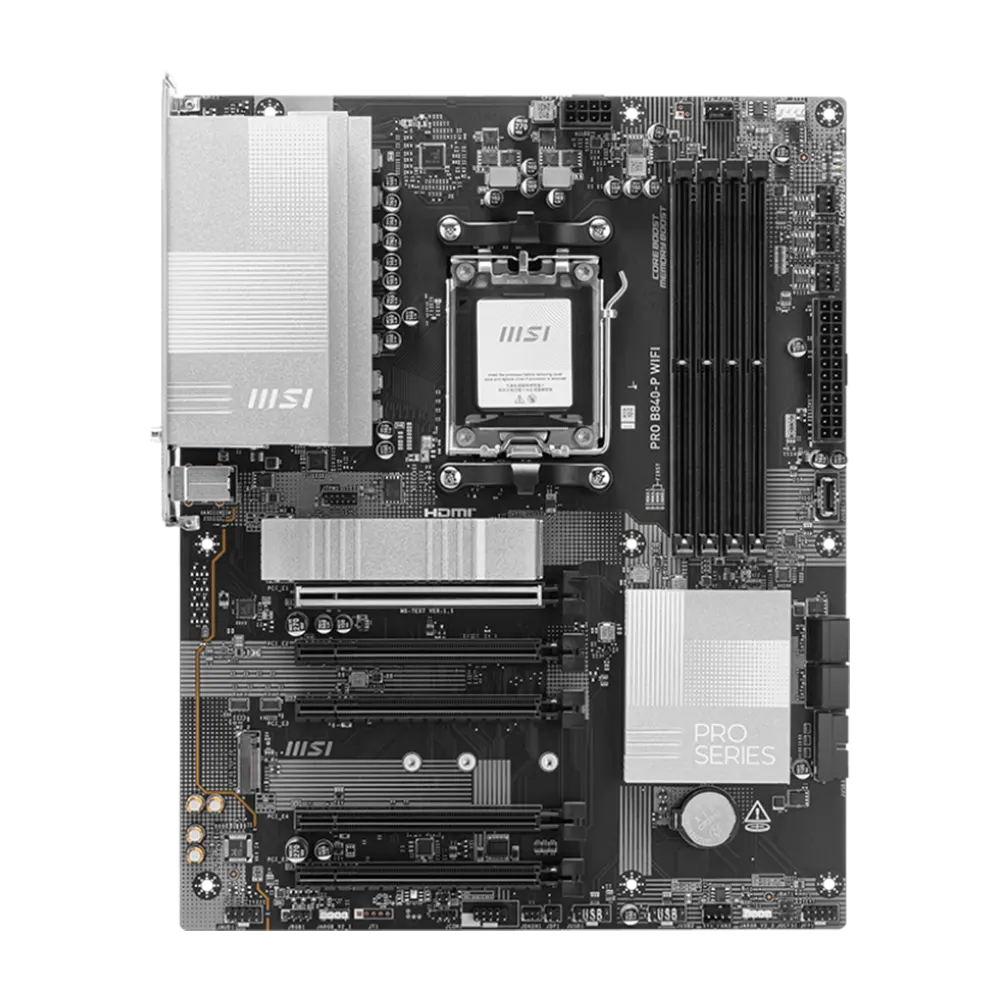

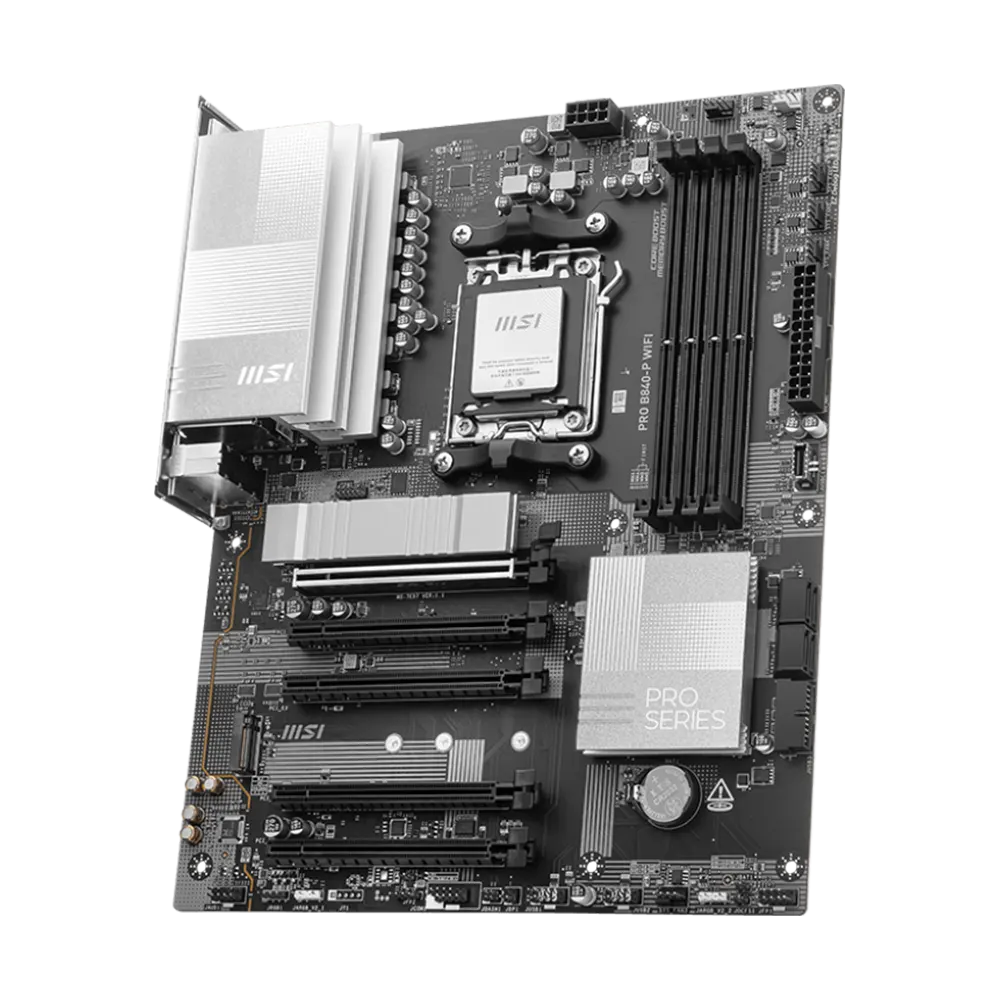

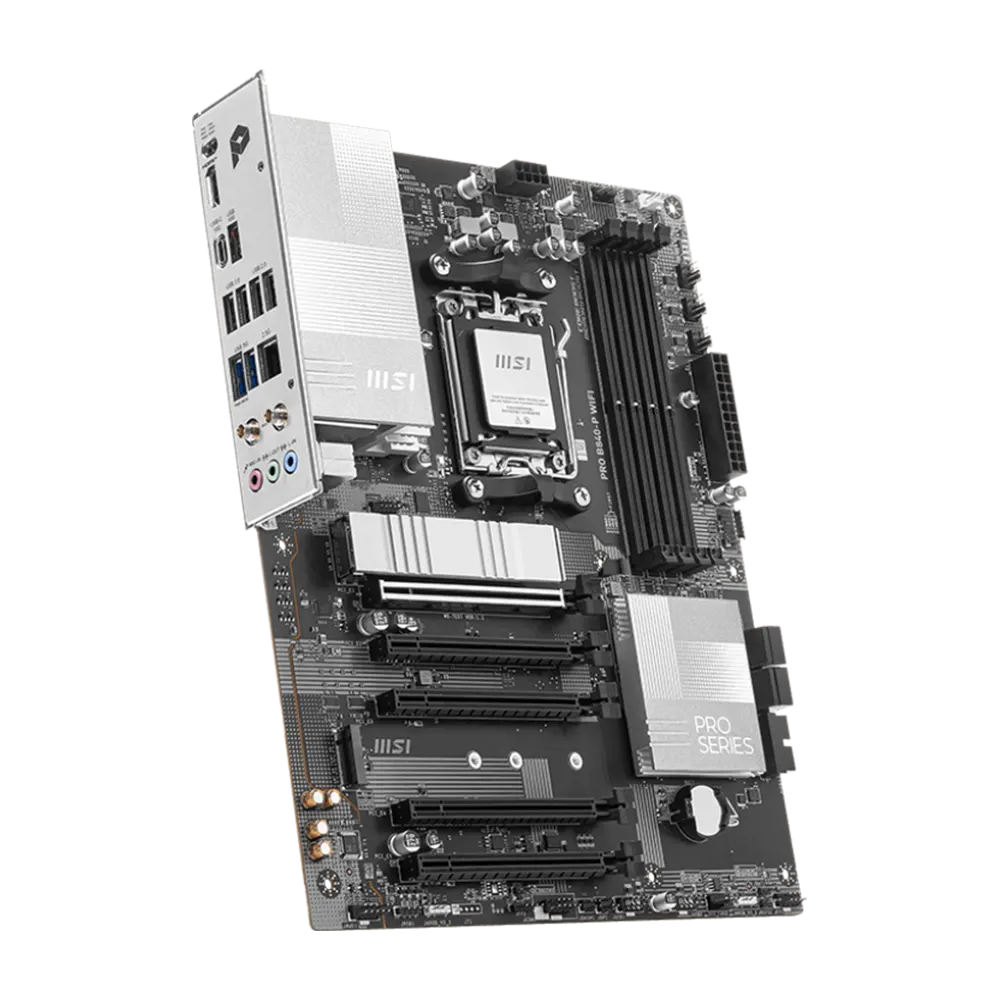

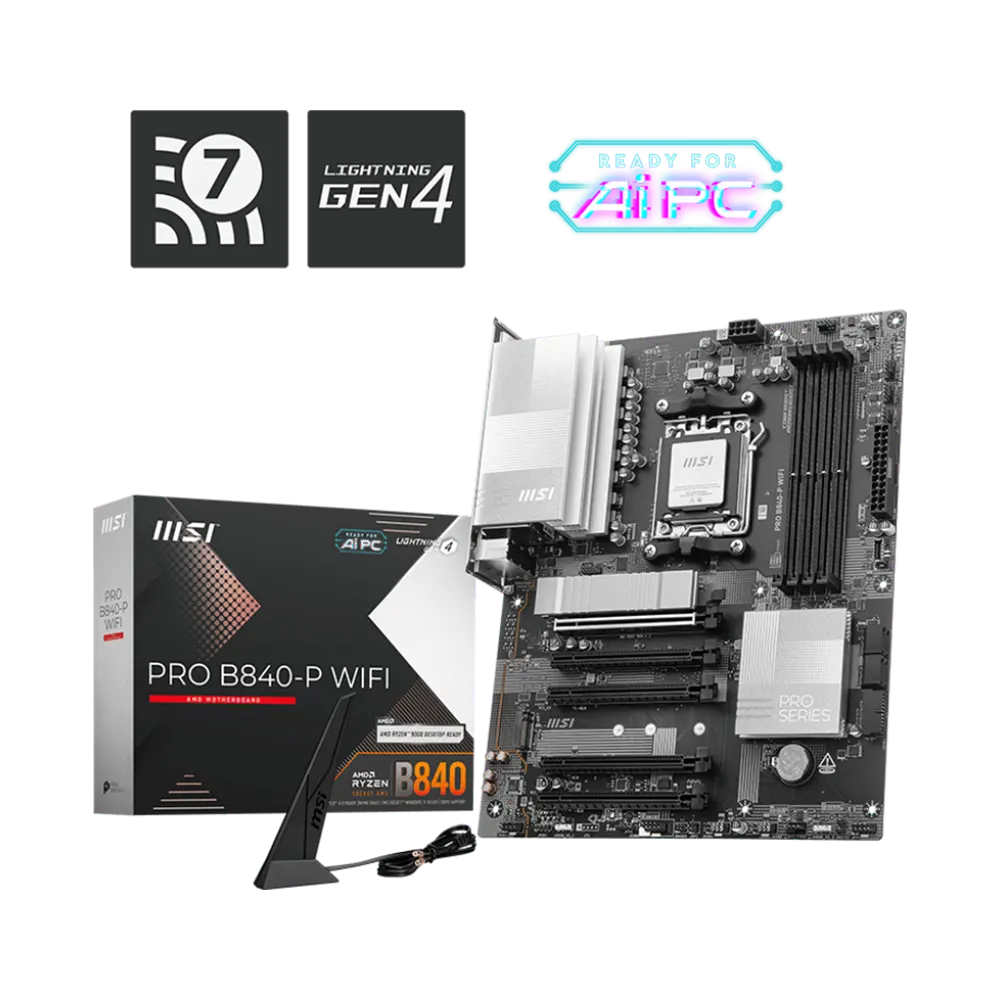

MSI Pro B840-P WIFI7 AI Ready Pro Series | AMD AM5 ATX
MSI Pro B840-P WIFI7 AI Ready Pro Series | AMD AM5 ATX - Figura 2
MSI Pro B840-P WIFI7 AI Ready Pro Series | AMD AM5 ATX - Figura 3
MSI Pro B840-P WIFI7 AI Ready Pro Series | AMD AM5 ATX - Figura 4
MSI Pro B840-P WIFI7 AI Ready Pro Series | AMD AM5 ATX - Figura 5
MSI Pro B840-P WIFI7 AI Ready Pro Series | AMD AM5 ATX
,

MSI Pro B840-P WIFI7 AI Ready Pro Series | AMD AM5 ATX

MSI
Availability:

Vetëm 1 stok
  • MSI Pro Series Motherboard
  • Pro B840-P AMD AM5
  • ATX Size, DDR5 4xDimm
  • For ryzen 7/8/9000 series
  • up to 8000MHz Support*
  • up to NVMe 4.0 Support*
  • Direct 7+2+1 Power
  • WIFI7, 2.5G Lan, Bluetooth
  • Ready for AI PC

20.500 LEK

Vetëm 1 stok

Bli Menjeher vetem kete produkt
Chipset AMD B840
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio Realtek® ALC897
7.1-Channel High Definition Audio
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
4x SATA 6G

M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
LAN Realtek® 8125D 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED

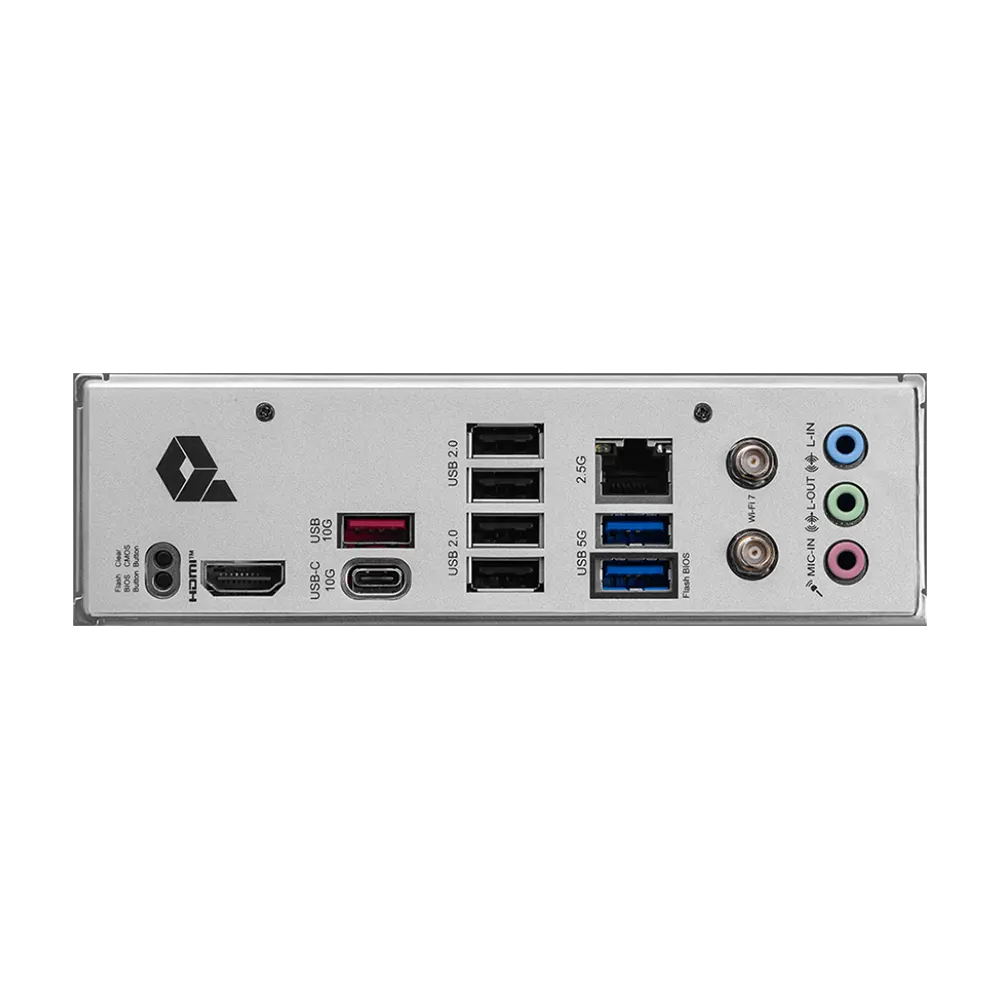

BACK PANEL PORTS

  1. Clear CMOS Button
  2. USB 10Gbps Type-A
  3. USB 2.0
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio connectors
  7. Flash BIOS Button
  8. HDMI™
  9. USB 10Gbps Type-C
  10. USB 5Gbps Type-A
OPERATING SYSTEM Support for Windows® 11 64-bit
SKU: B840-PWF Kategori: , Etiketa: , , , , , Markë:
Peshë 2 g/kg
Brand

MSI
Condition

New
CPU Socket

AMD AM5
fit-size

ATX
lights

No Ilumination
Ram Frequency

DDR5 4800Mhz, DDR5 5200MHz, DDR5 5600MHz, DDR5 6000MHz, DDR5 6400MHz, DDR5 6600MHz, DDR5 6800MHz, DDR5 7000MHz, DDR5 7200MHz, DDR5 7600MHz
Storage Type

2.5" Sata, 2280, 3.5" Sata, NMVe, PCIe 3.0, PCIe 4.0, PCIe x4, 22110, M.2 Sata, PCIe x2
Warranty

12Months
