MSI MPG B550 GAMING PLUS Gaming | AMD AM4 ATX
Ka stok
- MSI MPG Series Board
- B550 Gaming Plus RGB
- for Ryzen 3/4/5000 Series
- 4x DIMM’s DDR4 4400+
- NVMe4.0 Support
- RGB& ARGB Headers
- Gigabit Lan Port
17.500 LEK
Ka stok
| Brand | MSI |
|---|---|
| Model | MPG B550 GAMING PLUS |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 4400+/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe 4.0/3.0 x16 slot (PCI_E1) * * The supported specification depends on installed processor. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed ** ** When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable. |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/3.0 x4 * Supports SATA 6Gb/s Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0 x4 Supports 2242/2260/2280 storage devices* The supported specification depends on installed processor. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic:
1 x HDMI port, supports a maximum resolution of 4096×2160 @24Hz * Available for the processor with integrated graphics. |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |

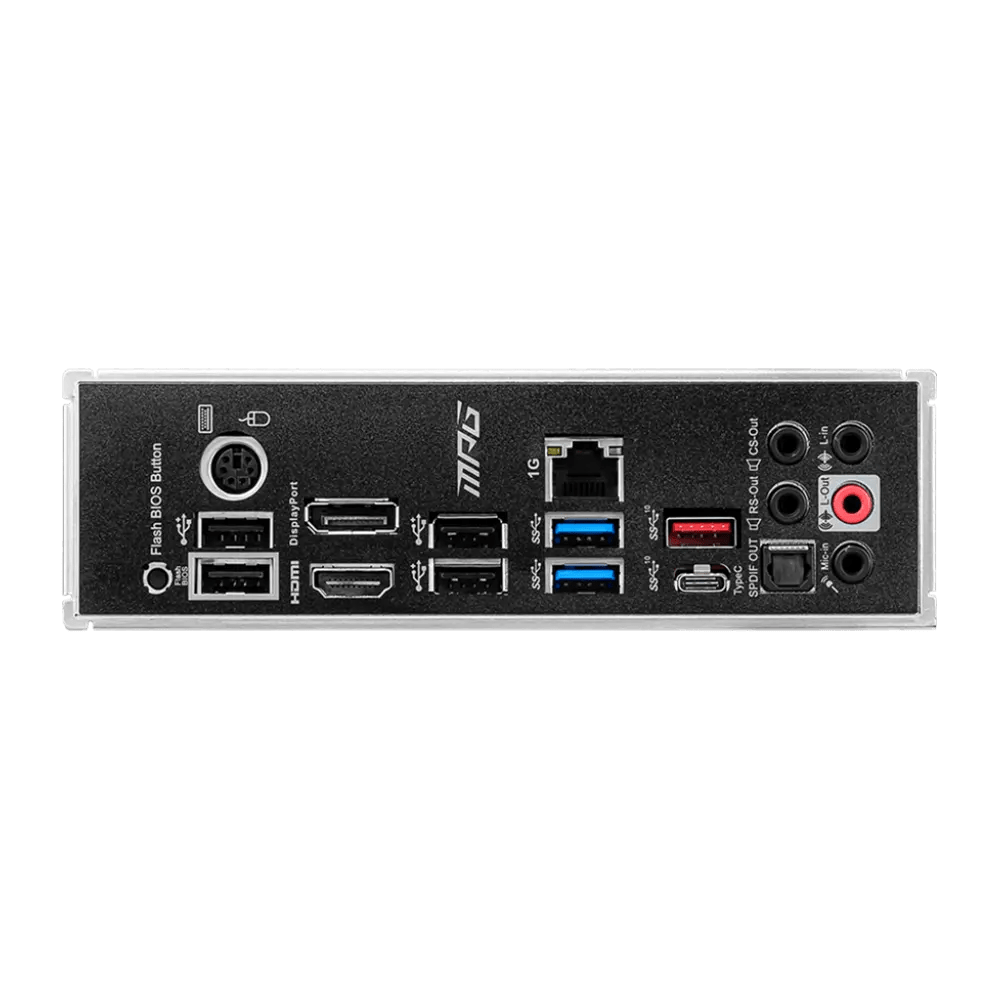

| Back I/O Ports | 4 x USB 3.1 Gen 1 |
|---|---|
| USB 3.0 | 4 x USB 3.0 |
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
Supports DDR4 Memory, up to 4400(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2 Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions Audio Boost: Reward your ears with studio grade sound quality |
|---|
| Peshë | 3 g/kg |
|---|---|
| Brand | MSI |
| Condition | New |
| CPU Socket | AMD AM4 |
| fit-size | ATX |
| lights | RGB |
| Ram Frequency | 2400MHz, 2666MHz, 3000MHz, 3200MHz, 3600MHz, 4000MHz, 5333MHz |
| Storage Type | 2.5" Sata, 2280, 3.5" Sata, NMVe, PCIe 3.0, PCIe 4.0, PCIe x4, M.2 Sata, PCIe x2 |
| Warranty | 12Months |
