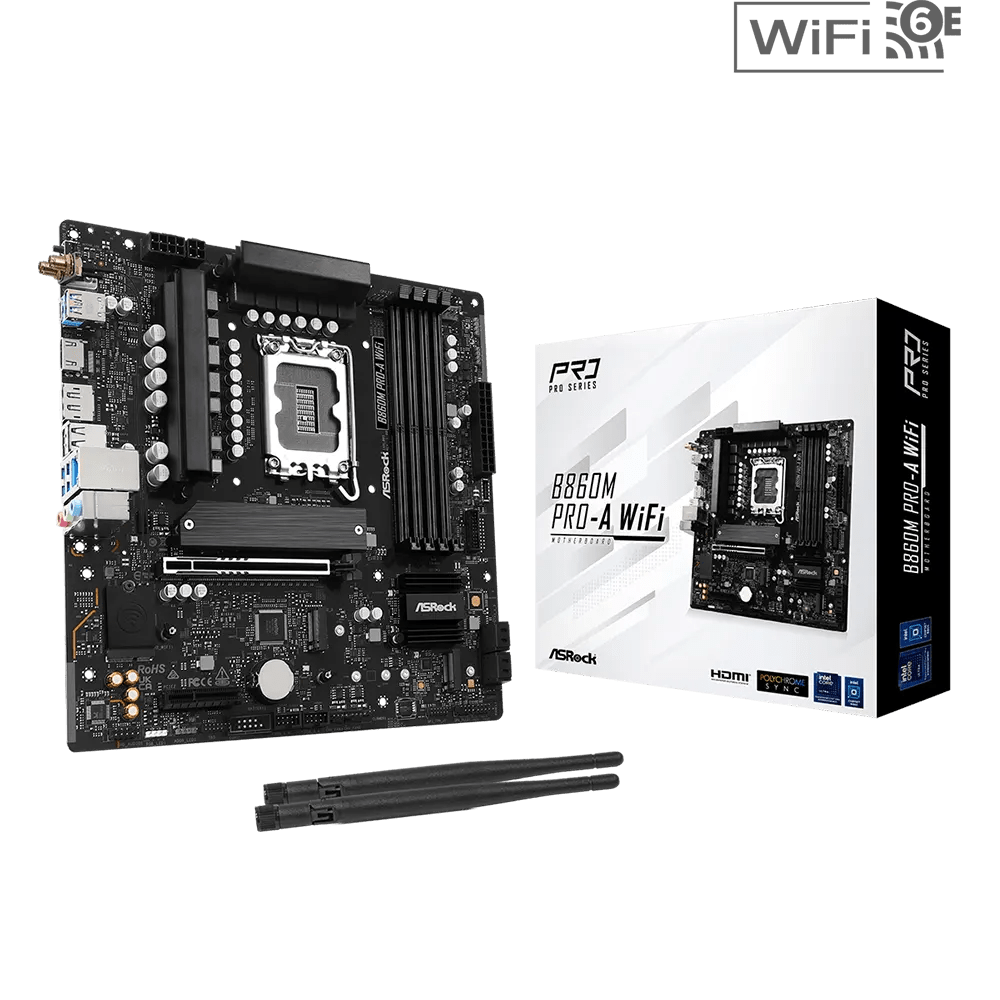

ASRock B860M Pro-A WiFi M-ATX | Gaming Intel S1851

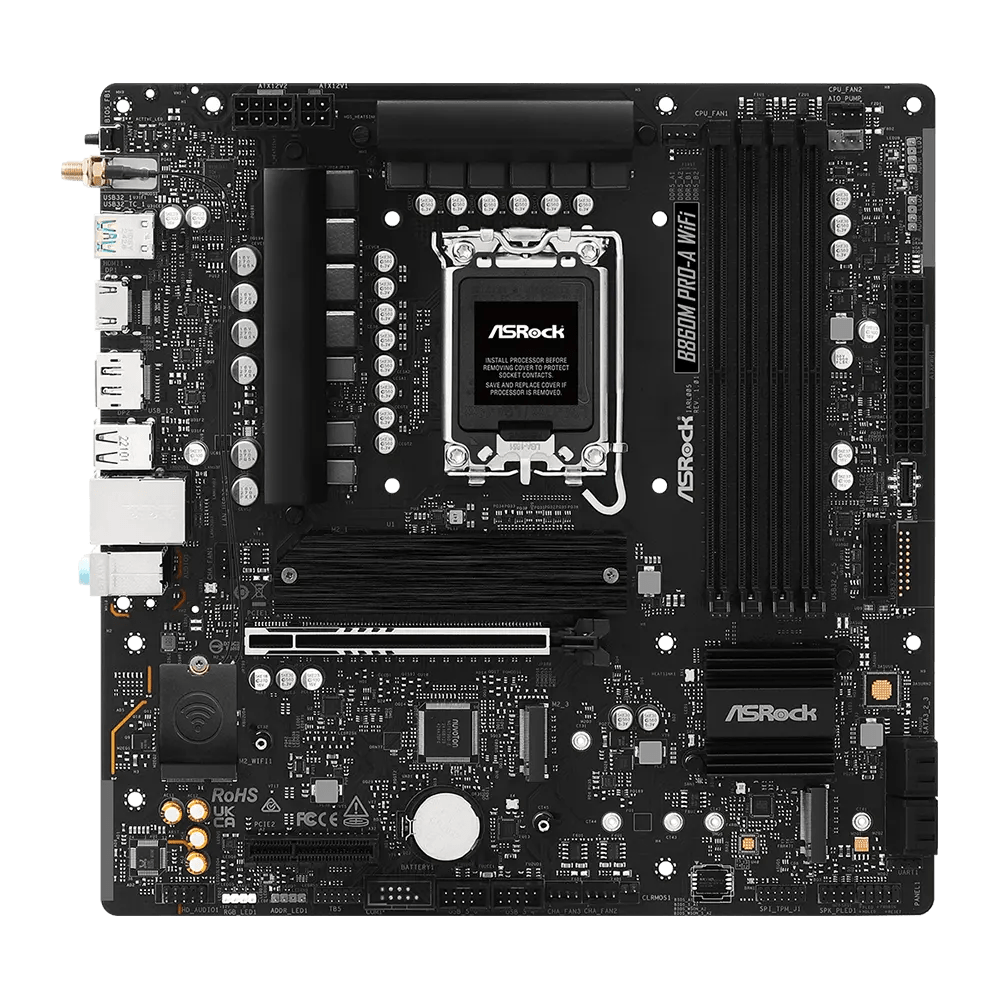

ASRock B860M Pro-A WiFi M-ATX | Gaming Intel S1851 - Figura 2

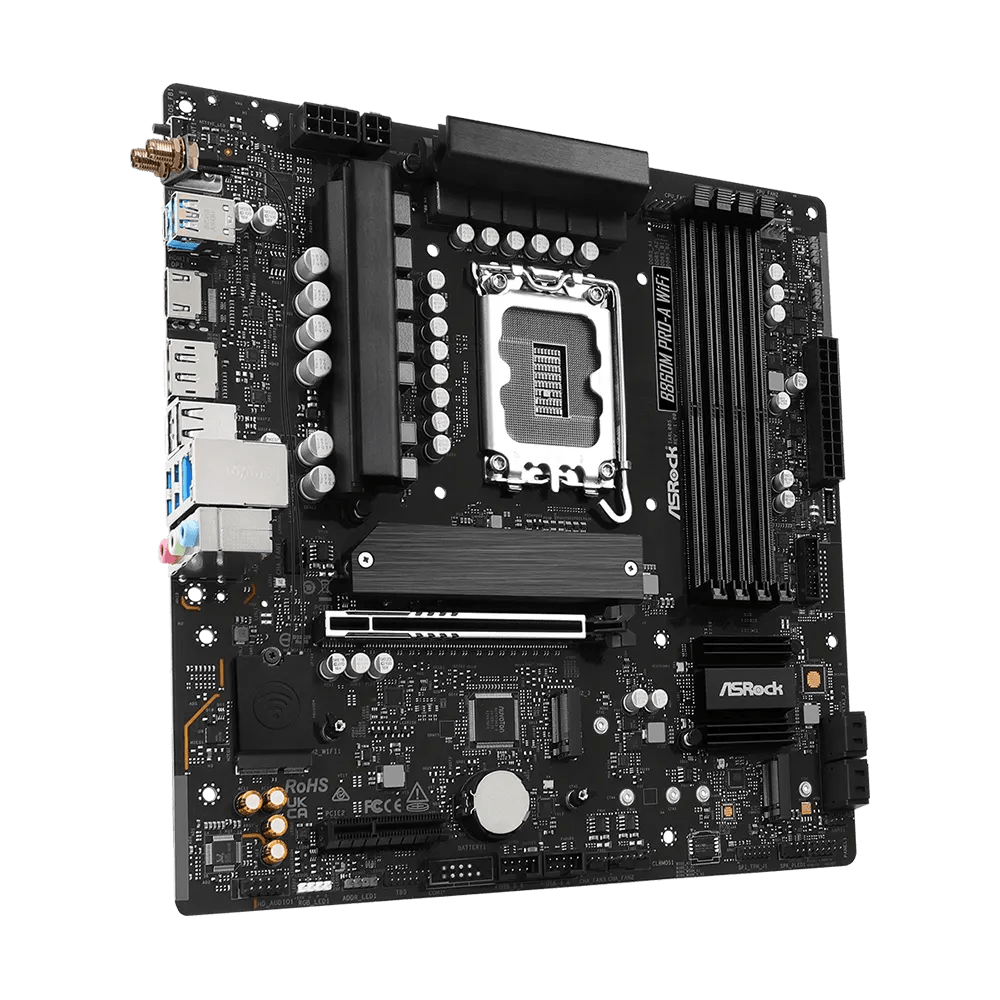

ASRock B860M Pro-A WiFi M-ATX | Gaming Intel S1851 - Figura 3
ASRock B860M Pro-A WiFi M-ATX | Gaming Intel S1851 - Figura 4
ASRock B860M Pro-A WiFi M-ATX | Gaming Intel S1851
,

ASRock B860M Pro-A WiFi M-ATX | Gaming Intel S1851

ASrocK
Availability:

Duke Ardhur

Gjendja: E Re ne Kuti | Garancia: 12 Muaj

  • ASRock Gaming M-ATX
  • B860M Pro-A WIFI Black
  • For Intel Ultra Series
  • Socket S1851, 4xDIMM’s
  • WIFI 6E, Bluetooth 5.3
  • 1x NVMe5.0, 2x NVMe4.0
  • 1 x USB 3.2 Gen2x2 Type-
  • 1 x PCIe 5.0 x16 Slot GPU
  • 2.5G Lan Port, 10+1+1+1+1 Power Phase

19.900 LEK

Ne stok me: 22/09/2025

Bli Menjeher vetem kete produkt
  • Unique Feature
    Superb Productivity
    – PCIe Gen5 (Graphics, M.2)
    – Dual Channel DDR5
    Rock-Solid Durability
    – 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
    Ultrafast Connectivity
    – 2.5G LAN, 802.11axe Wi-Fi 6E Module
    EZ Update
    – BIOS Flashback Button
    – ASRock Auto Driver Installer
    EZ Troubleshooter
    – ASRock Post Status Checker
  • CPU
    – Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    – Supports Intel® Hybrid Technology
    – Supports Intel® Turbo Boost Max 3.0 Technology
    – Supports Intel® Thermal Velocity Boost (TVB)
    – Supports Intel® Adaptive Boost Technology (ABT)
    – Integrated NPU for dedicated AI acceleration
  • Chipset
    – Intel® B860
  • Memory
    – Dual Channel DDR5 Memory Technology
    – 4 x DDR5 DIMM Slots
    – Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
    – Supports Clocked Unbuffered DIMM (CUDIMM)
    – Max. capacity of system memory: 256GB
    – Supports Intel® Extreme Memory Profile (XMP) 3.0x

    *1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    – Intel® Xe LPG Graphics Architecture
    – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – Dragon RTL8125BG
    – Supports Dragon 2.5G LAN Software
    – Smart Auto Adjust Bandwidth Control
    – Visual User Friendly UI
    – Visual Network Usage Statistics
    – Optimized Default Setting for Game, Browser, and Streaming Modes
    – User Customized Priority Control
  • Wireless LAN
    – 802.11axe Wi-Fi 6E Module
    – Supports IEEE 802.11a/b/g/n/ac/ax/axe
    – Supports Dual-Band 2×2 with extended 6GHz band* support
    – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    – Supports Bluetooth 5.3
    – Supports MU-MIMO

    *The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU:
    – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    * Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 4 x SATA3 6.0 Gb/s Connectors

    * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    CPU:
    – 1 x USB 3.2 Gen2x2 Type-C (Rear)
    Chipset:
    – 1 x USB 3.2 Gen1 Type-C (Front)
    – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    – 6 x USB 2.0 (2 Rear, 4 Front)

    * All USB ports support ESD Protection
  • Connector
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x RGB LED Header*
    – 3 x Addressable LED Headers**
    – 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
    – 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
    – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 port)
    – 1 x Front Panel Type C USB 3.2 Gen1 Header

    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
    CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

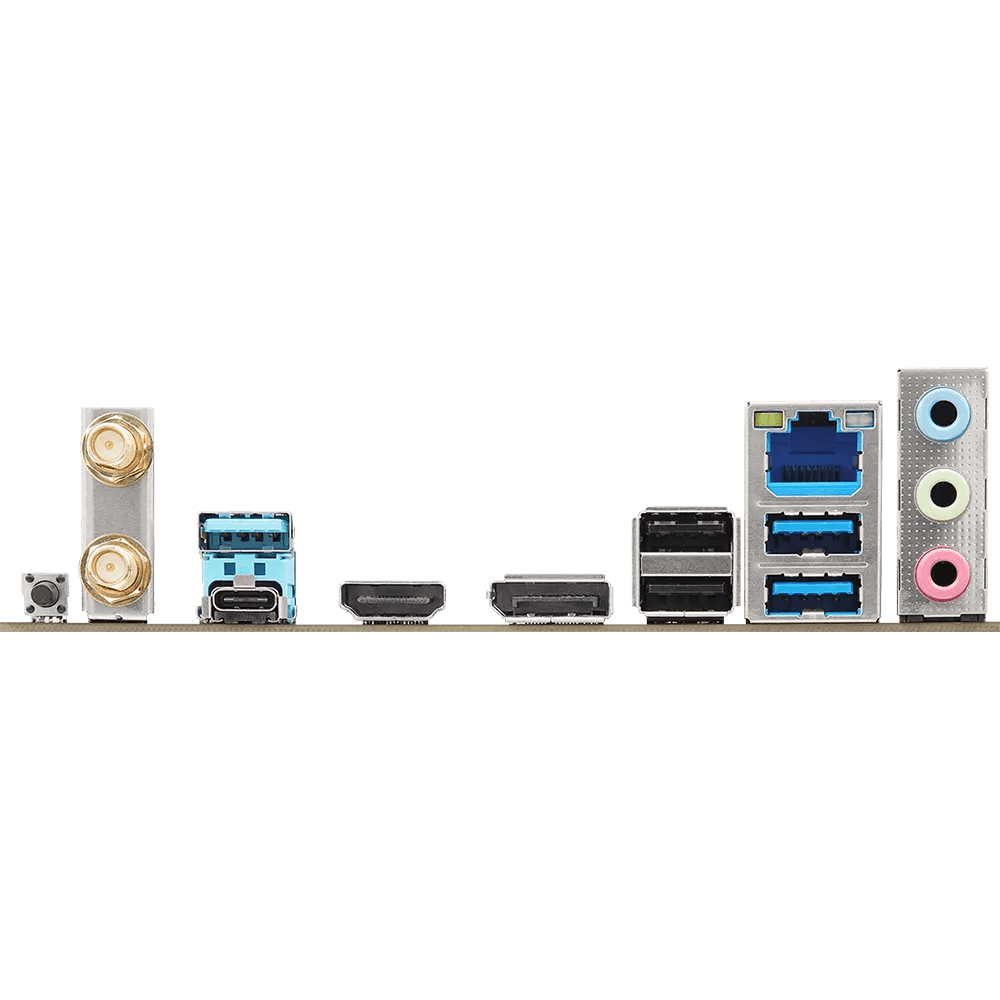

  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    – 3 x USB 3.2 Gen1 Ports
    – 2 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – 1 x BIOS Flashback Button
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)
    – ASRock Dragon 2.5G LAN Software
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock EZ Mode
    – ASRock Full HD UEFI
    – ASRock My Favorites in UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 1 x I/O Shield
    – 2 x SATA Data Cables
    – 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  • Form Factor
    – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • OS
    – Microsoft Windows® 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
SKU: B860M Pro-A WiFi Kategori: , Etiketa: , , , , , Markë:
Peshë 3 g/kg
Brand

ASrocK
Condition

New
CPU Socket

LGA S1851
fit-size

Micro-ATX
lights

No Ilumination
Ram Frequency

5333MHz, DDR5 4800Mhz, DDR5 5200MHz, DDR5 5600MHz, DDR5 6000MHz, DDR5 6400MHz, DDR5 6600MHz, DDR5 6800MHz, DDR5 7000MHz, DDR5 7200MHz, DDR5 7600MHz
Storage Type

2.5" Sata, 2280, 3.5" Sata, NMVe, PCIe 3.0, PCIe 4.0, PCIe x4, M.2 Sata, PCIe 5.0, PCIe x2
Warranty

12Months
