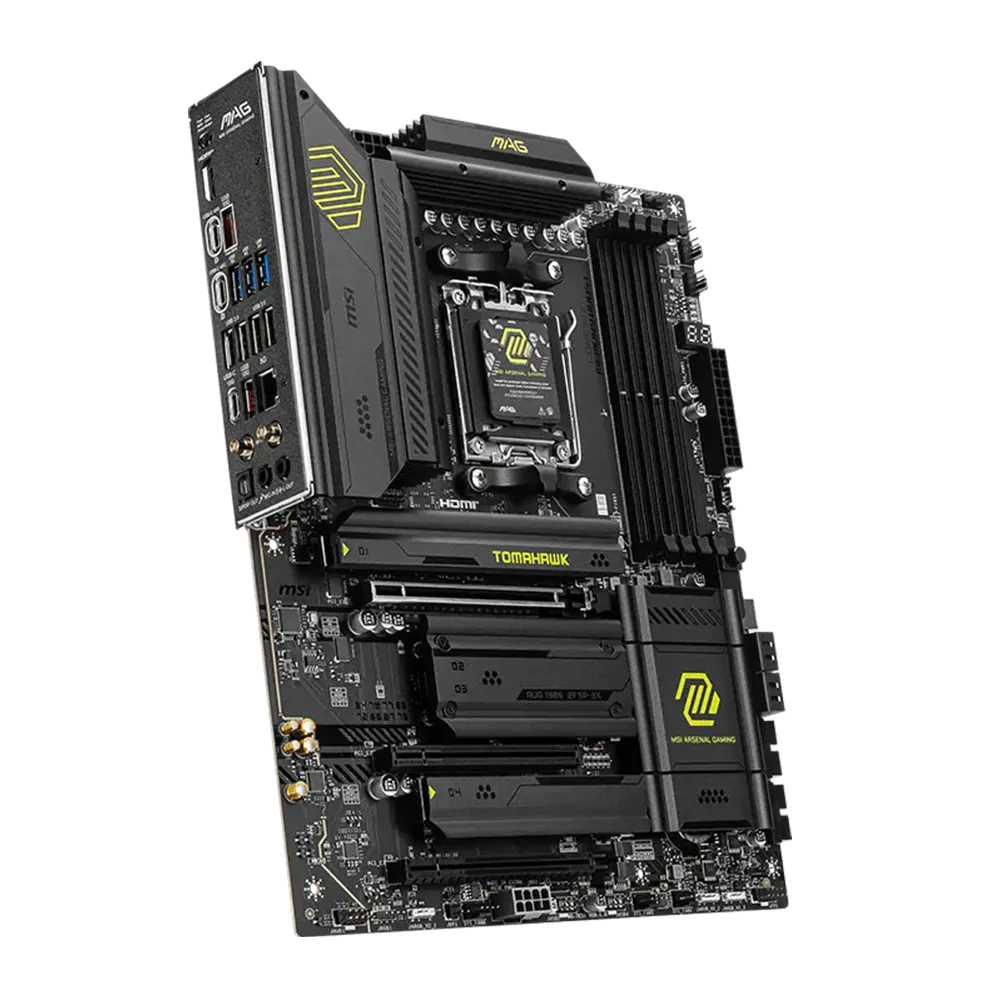

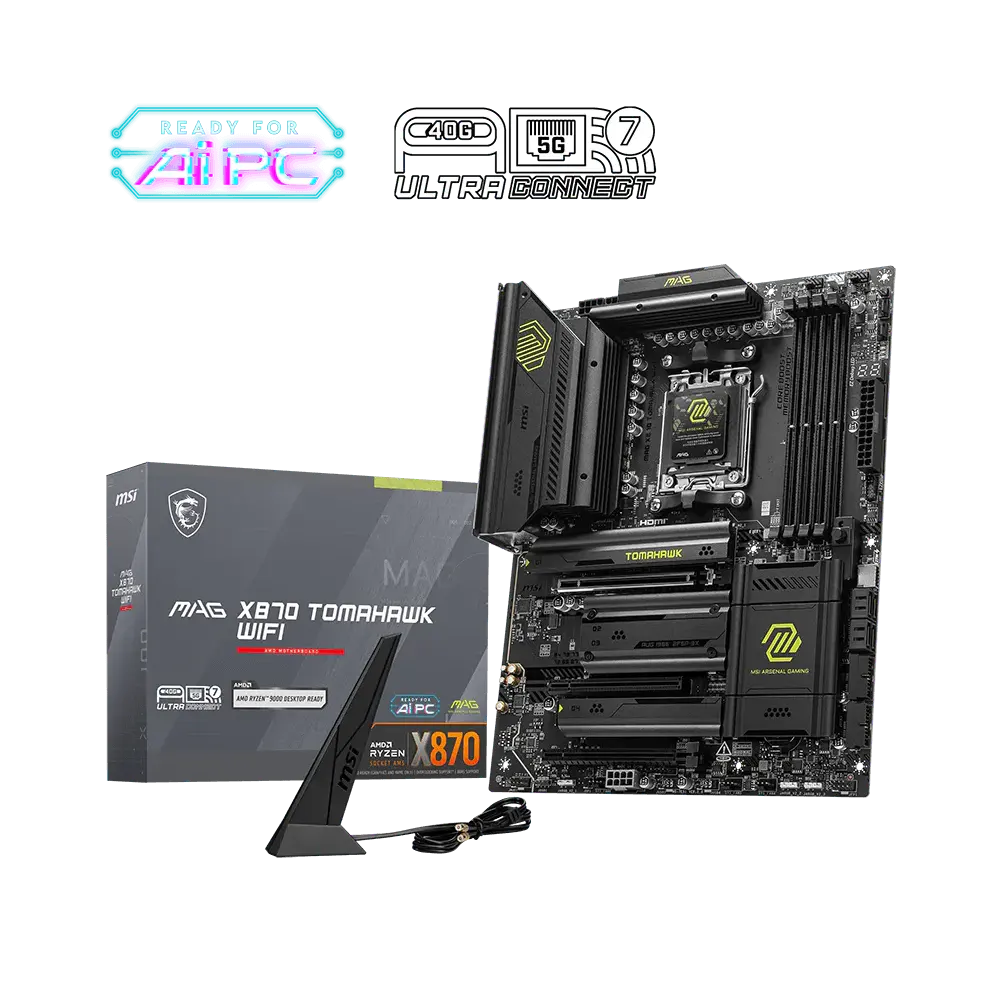

MSI MAG X870 TOMAHAWK WIFI7 ATX DDR5 |AMD AM5
MSI MAG X870 TOMAHAWK WIFI7 ATX DDR5 |AMD AM5 - Figura 2
MSI MAG X870 TOMAHAWK WIFI7 ATX DDR5 |AMD AM5 - Figura 3
MSI MAG X870 TOMAHAWK WIFI7 ATX DDR5 |AMD AM5 - Figura 4
MSI MAG X870 TOMAHAWK WIFI7 ATX DDR5 |AMD AM5
,

MSI MAG X870 TOMAHAWK WIFI7 ATX DDR5 |AMD AM5

MSI
Availability:

Vetëm 1 stok

Gjendja: E Re ne Kuti | Garancia: 12 Muaj

  • MSI Gaming Motherbaord
  • X870 Tomahawk WIFI7
  • for Ryzen 7,8,9000 Series
  • 4x DDR5 DIMM’s 8000+
  • up to NVMe 5.0 Support
  • 2x Lightning USB C 40G
  • Quadruple M.2 Connectors
  • 5G Lan Network solution
  • WIFI 7, Bluetooth 5.4
  • Flash BIOS button

33.500 LEK

Vetëm 1 stok

Bli Menjeher vetem kete produkt
Model
Brand MSI
Model MAG X870 TOMAHAWK WIFI
Supported CPU
CPU Socket Type  AM5
CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset  AMD X870
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400
Maximum Memory Supported 256GB
Channel Supported  Dual Channel
ECC Supported Non-ECC
Buffer Supported Un-buffered
Expansion Slots
PCI Express 5.0 x16 PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16
PCI Express x4 PCI_E3 slot (From Chipset X870) Supports up to PCIe 4.0 x4
PCI Express x1 PCI_E2 slot (From Chipset X870) Supports up to PCIe 3.0 x1
Storage Devices
Serial ATA (SATA)  4 x SATA 6Gb/s
M.2 M2_1 slot (From CPU)
– Supports up to PCIe 5.0 x4
– Supports 2280/110 storage devices
M2_2 slot (From CPU)
– Supports up to PCIe 5.0 x4
– Supports 2260/80 storage devices
M2_3 slot (From Chipset)
– Supports up to PCIe 4.0 x2
– Supports 2260/80 storage devices
M2_4 slot (From Chipset)
– Supports up to PCIe 4.0 x4
– Supports 2260/80 storage devices
* The M2_2 slot will be unavailable when using Ryzen 5 8500G processor.
** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot
SATA RAID Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset  Realtek ALC4080
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek 8126-VB
Max LAN Speed 5Gbps
Wireless LAN Wi-Fi 802.11 be
Bluetooth Bluetooth 5.4

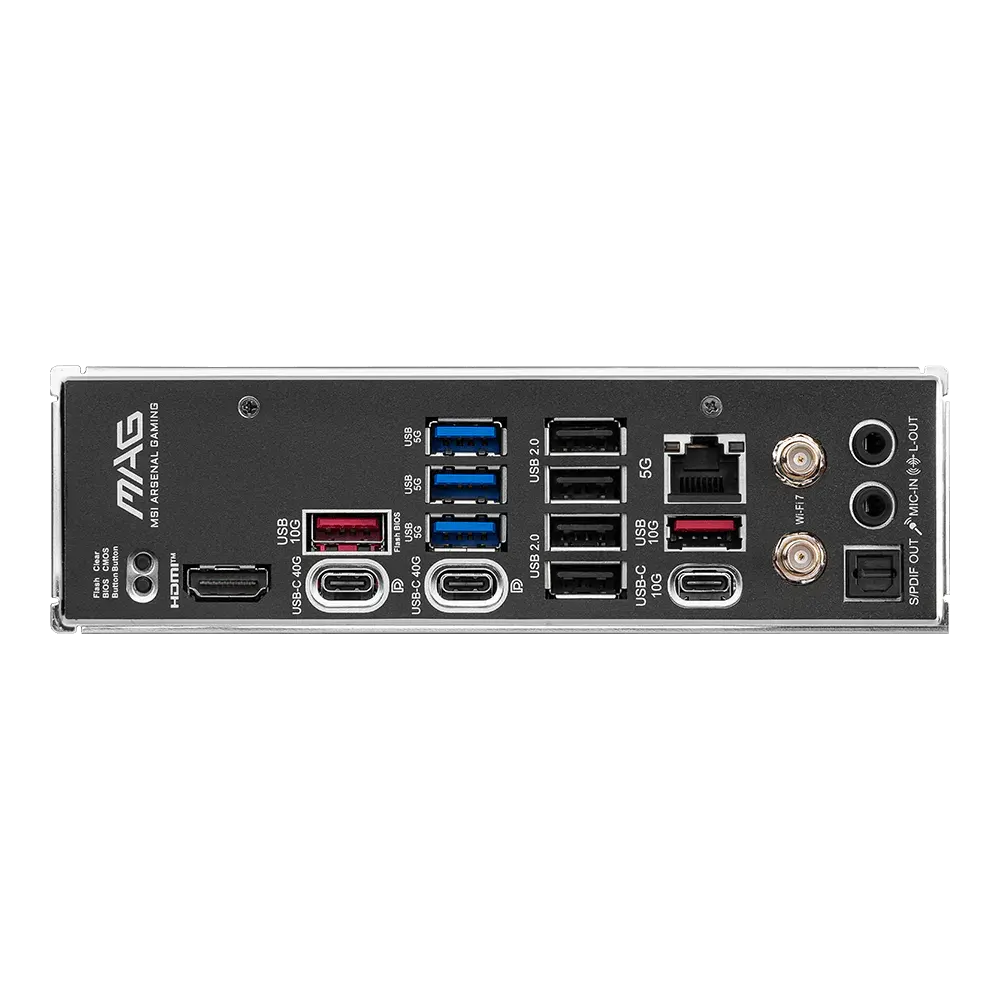

Rear Panel Ports
Back I/O Ports 1 x Flash BIOS button
1 x Clear CMOS button
1 x HDMI port
1 x USB 10Gbps Type-A (From CPU)
1 x USB 10Gbps Type-A (From X870 chipset)
1 x USB 10Gbps Type-C (From X870 chipset)
2 x USB 40Gbps Type-C (From ASM4242)
3 x USB 5Gbps Type-A (From GL3523)
4 x USB 2.0 Type-A ports (From GL850)
1 x 5Gbps LAN (RJ45) port
2 x Wi-Fi Antenna connectors
2 x audio jacks
1 x Optical S/PDIF Out connector
Internal I/O Connectors
Onboard USB AMD X870 Chipset
– 1 x USB 20Gbps Type-C front panel port with Power Delivery Supports up to 27W fast charging
– 2 x USB 5Gbps connectors Supports additional 4 USB 5Gbps ports
– 2 x USB 2.0 connectors Supports additional 4 USB 2.0 ports
Other Connectors Fan Connectors
– 1x 4-pin CPU fan connector
– 6x 4-pin system fan connectors
– 1x 4-pin water-pump/ system fan connector
– 1x EZ Conn-Header V2 (JAF_2 with 11-Pin)

System Connectors
– 1x Front panel audio connector
– 2x System panel connectors
– 1x Chassis Intrusion connector
– 1x TPM module connector

Jumpers
– 1x Clear CMOS jumper
– 1x OC safe boot BIOS jumper
Physical Spec
Form Factor ATX
LED Lighting 1 x 4-pin RGB LED connector
3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
4 x EZ Debug LED
1 x 2-Digit Debug Code LED
1 x EZ Conn-Header V2 (JAF_2 with 11-Pin)
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Power Connector (ATX_PWR)
2 x 8-pin Power Connector (CPU_PWR)
1 x 8-pin Power Connector (PCIE_PWR)
Software Feature
BIOS Feature 1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.7
Multi-language
Software Drivers
MSI Center
Acrobat
Adobe Creative Cloud
AIDA64 Extreme-MSI Edition
CPU-Z MSI GAMING
MSI App Player (BlueStacks)
Norton 360
Features
Features MSI Center Features
– MSI AI Engine
– Game Highlights
– Frozr AI Cooling
– Hardware Monitoring
– Live Update
– MSI Companion
– System Diagnosis
– Cooling Wizard
– LAN Manager
– Mystic Light
– Ambient Link
– True Color
– User Scenario
– Super Charger +

Thermal Features
– K7 MOSFET thermal pad / K5 Extra choke pad
– Extended Heatsink Design
– Fan headers (CPU + Combo+PUMP + SYSTEM)
– M.2 Shield Frozr

Performance
– Lightning Gen 5 PCI-E Slot / M.2
– Lightning Gen 4 PCI-E Slot / M.2
– Front USB Type-C
– USB with PD
– Supplemental PCIe Power Connector
– Core Boost
– Dual CPU Power
– Memory Boost
– Server Grade PCB
– 2oz Copper thickened PCB

DIY Friendly
– EZ M.2 Sheild Frozr II
– EZ M.2 Clip II
– EZ PCIe Release
– Flash BIOS Button
– Clear CMOS Button
– Pre-installed I/O Shield
– EZ Antenna
– EZ Front Panel Cable
– EZ Conn-Design
– PCI-E STEEL ARMOR II
– EZ Digi-Debug LED
– EZ LED Control

Audio
– Audio Boost 5

RGB Support
– Mystic Light
– Mystic Light Extension (RGB)
– Mystic Light Extension (ARGB V2)
– Ambient Devices Support

BIOS
– Click BIOS X
– AI Boost
– Performance Preset
SKU: 911-7E51-07S Kategori: , Etiketa: , , , , , , Markë:
Peshë 4 g/kg
Brand

MSI
Condition

New
CPU Socket

AMD AM5
fit-size

ATX
lights

No Ilumination
Ram Frequency

DDR5 4800Mhz, DDR5 5200MHz, DDR5 5600MHz, DDR5 6000MHz, DDR5 6400MHz, DDR5 6600MHz, DDR5 6800MHz, DDR5 7000MHz, DDR5 7200MHz, DDR5 7600MHz
Storage Type

2.5" Sata, 2280, 3.5" Sata, NMVe, PCIe 3.0, PCIe 4.0, PCIe x4, 22110, M.2 Sata, PCIe 5.0, PCIe x2
Warranty

12Months
